We Take A Look at the Source Audio Bass Zio Analog Preamp + DI
In the modern bassist’s toolkit, a solid preamp/DI pedal has become more than a convenience—it’s often a necessity. With players increasingly running direct to front-of-house, recording straight into interfaces, or sculpting their tone beyond what their amp alone can offer, the right pedal can anchor a rig with clarity, punch, and consistency. The landscape is rich with options, from the high-fidelity polish of boutique units to the aggressive edge of more character-driven boxes.
Enter the Source Audio ZIO Analog Bass Preamp + DI—a pedal designed from the ground up for bass players, not a guitar design repurposed with a lowered frequency response. Built on an all-analog platform and housed in a rugged, no-nonsense enclosure, the Bass ZIO combines precise tone shaping with smart utility features. With selectable analog preamp voicings, studio-grade output options, and a clean user interface, it promises to serve as the always-on core of any pedalboard or DI rig. Let’s examine its layout, functionality, tonal characteristics, and where it fits in the current market of bass preamps.
Disclaimer: This pedal was kindly provided by Source Audio for the purpose of this review. However, this does not influence our opinions or the content of our reviews. We strive to provide honest, unbiased, and accurate assessments to ensure that our readers receive truthful and helpful information.
Functional Overview

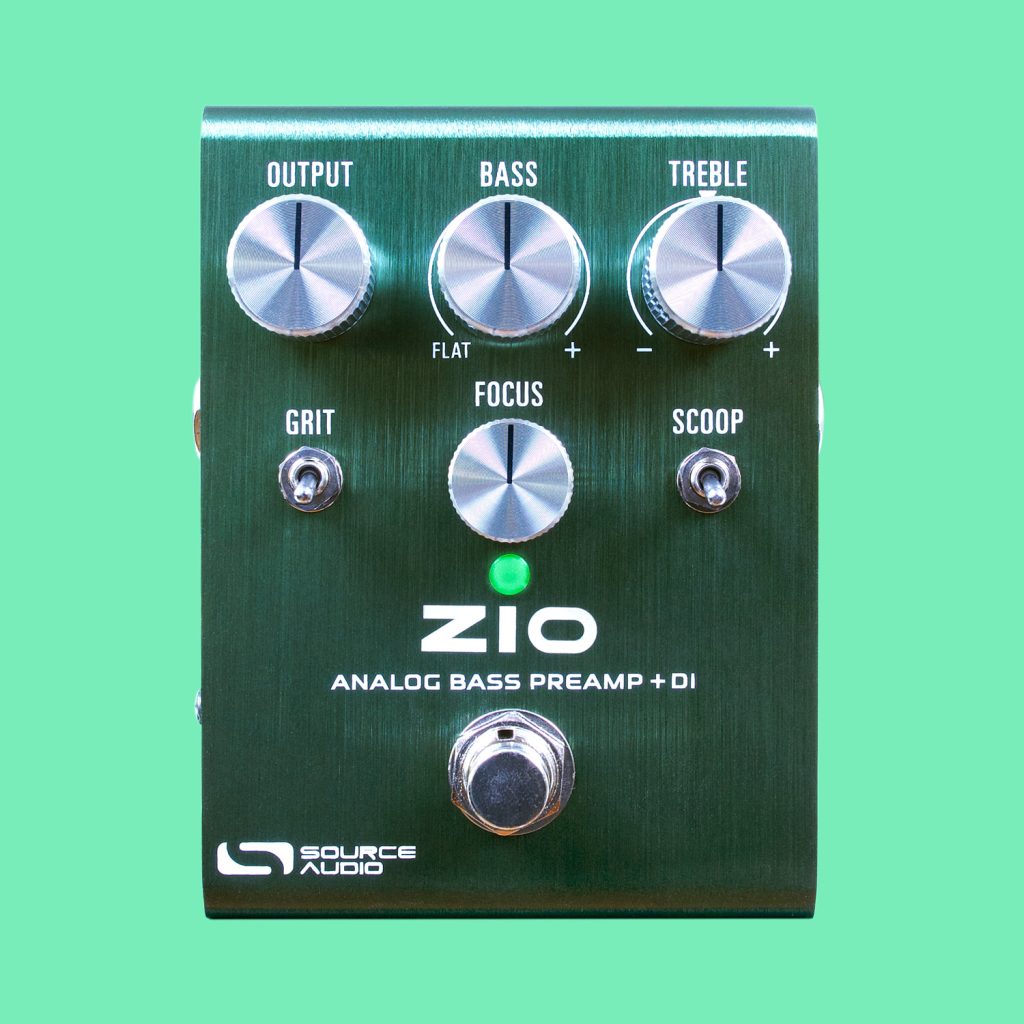

At its core, the ZIO Bass Preamp delivers a streamlined but highly usable control set, balancing flexibility with simplicity. Here’s what it offers:
- Output Control: Ranging from -6dB to +16dB, this acts as a master gain control. Whether you’re matching signal levels with an amp or hitting a DAW input just right, this knob offers plenty of headroom and precision.
- Bass and Treble EQ: The EQ section is voiced for musical responsiveness. The Bass control boosts from flat to +11dB around 100Hz, giving you the ability to thicken up your low end or dial it back when needed. The Treble knob covers frequencies centered at 1kHz and offers a range from -6dB cut to +14dB boost—great for enhancing articulation or smoothing out clank.
- Focus Control: This is a high-pass filter, a somewhat uncommon addition on bass pedals, but highly practical. It works in tandem with the Bass knob to let you tighten the low end—cutting sub-bass rumble while keeping the punch intact.
- Grit Toggle: Instead of a dedicated gain knob, Source Audio opted for a toggle switch to engage a soft-clipping circuit. The distortion here is subtle and emulates transformer saturation rather than high-gain drive, adding warmth and a touch of harmonic complexity. A side-mounted trim pot adjusts the intensity.
- Scoop Switch: This introduces a pre-defined midrange dip modeled after the classic Pultec-style EQ curve. It’s a smart choice for players wanting a modern, slightly scooped tone that sits well in dense mixes.
- Gain Trimmer: Accessible from the side, this screwdriver-adjusted control lets you fine-tune how much the input signal is amplified. It’s particularly useful for optimizing the pedal based on whether you’re playing passive vintage-style instruments or hot-output active basses.
- Footswitch Behavior: Uniquely, the footswitch here doesn’t fully bypass the pedal. Instead, it disables the EQ and Output knobs while leaving the signal path active through the Main, Headphone, and DI outputs. This keeps your routing intact even when the tonal coloration is disengaged.
Performance and Tonal Identity
The ZIO’s voicing leans toward clean and balanced, with enough shaping options to subtly refine your tone rather than reinvent it. It’s not a character pedal in the way a tube emulator or amp sim might be—but it does bring a studio-like clarity and polish that benefits both live and recorded bass tracks. The low-end response is full but controlled, and the Focus control proves especially useful for carving out unwanted sub frequencies in boomy environments.
The Grit circuit adds warmth and slight breakup, but remains tame and musical. It’s more about rounding off transients and adding texture than delivering any real drive aggression. That aligns with the ZIO’s broader design philosophy—it enhances rather than overwhelms your existing tone.

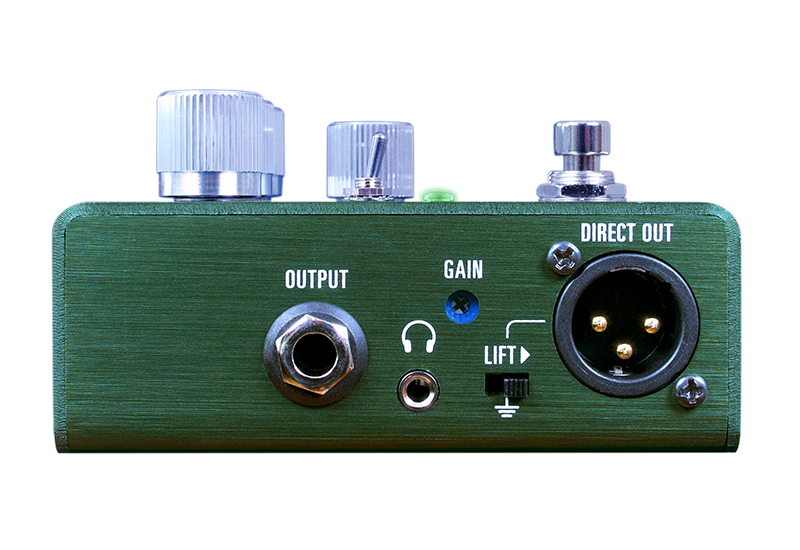

Where this pedal really shines is in its versatility. Whether placed at the front of a signal chain as a preamp, used at the end as a final tone sculptor and DI, or dropped into a studio setup as a portable tracking tool, it feels at home. The balanced XLR output provides clean, noise-free signal ideal for live sound engineers and home recording alike, and the headphone amp is clear and powerful enough to serve as a practice solution when amps aren’t an option.
Practical Considerations
The choice to place the Grit and Scoop functions (especially the Grit) on toggles rather than footswitches limits how performative the pedal can be in dynamic live sets. For some players, this could be a drawback, particularly if they’re used to engaging and disengaging textures on the fly. Similarly, the screwdriver-adjusted Gain trimmer—while fine for studio or rehearsal use—may prove less convenient on dark stages or quick changeovers.
On the other hand, this minimalism helps keep the layout clean and intuitive. There’s a sense of purpose here: Source Audio appears to have built this pedal not as a tweak-heavy sound design tool, but as a refined, everyday tone enhancer that stays on and quietly does its job without fuss.
Pros and Cons
Pros:
- Clean, all-analog signal path with ample headroom
- Practical, well-voiced EQ section with high-pass shaping
- Subtle but effective harmonic coloration via Grit toggle
- Excellent DI and headphone outputs for stage and studio
- Sturdy build and compact footprint
Cons:
- Grit toggle feels like its missing a footswitch control
- Gain adjustment requires a tool—less convenient for live tweaking
- Less ideal for players seeking aggressive or modifiable overdrive
Final Verdict
The Source Audio ZIO Bass Preamp + DI occupies a thoughtful niche in the increasingly crowded bass preamp market. Rather than chasing amp modeling or saturation-heavy voicings, it focuses on tonal integrity, clarity, and consistency. It’s a “set it and forget it” pedal in the best possible way—ideal for players who want their bass to sound polished, tight, and musical with minimal fuss.
It may not be the choice for players looking to radically alter their tone or stomp in and out of drive mid-song, but for those seeking subtle refinement, top-tier DI performance, and a reliable studio/live interface, the ZIO Bass delivers with confidence and class.
