A practical guide to shaping your bass tone, cutting through the mix, and understanding what EQ with the Joyo R-12
Disclaimer: This pedal was kindly provided by Joyo for the purpose of this review. However, this does not influence our opinions or the content of our reviews. We strive to provide honest, unbiased, and accurate assessments to ensure that our readers receive truthful and helpful information.
I’ve always considered EQ pedals among the most useful pieces of equipment a bass player can own, although they’re also among the least understood. Most of us can pick up a distortion pedal and work out fairly quickly how it affects our sound, even if we don’t know much about the electronics behind it. Equalisation is a different story. Moving a slider can make a bass sound fuller, clearer or more aggressive, but understanding why a particular adjustment works is what allows you to get consistent results rather than relying on trial and error.
That’s one of the reasons I was particularly interested when Joyo sent me the R-12 Band Controller. Over the years, Joyo has become a friend of Bass Gear Reviews, partly thanks to the success of my original review of the Scylla compressor, which eventually became the most successful article on the website. That led to further collaborations, including the Avallon compressor, and now the R-12. Before discussing what this pedal can do for your sound, though, it’s worth understanding what those ten sliders actually control.

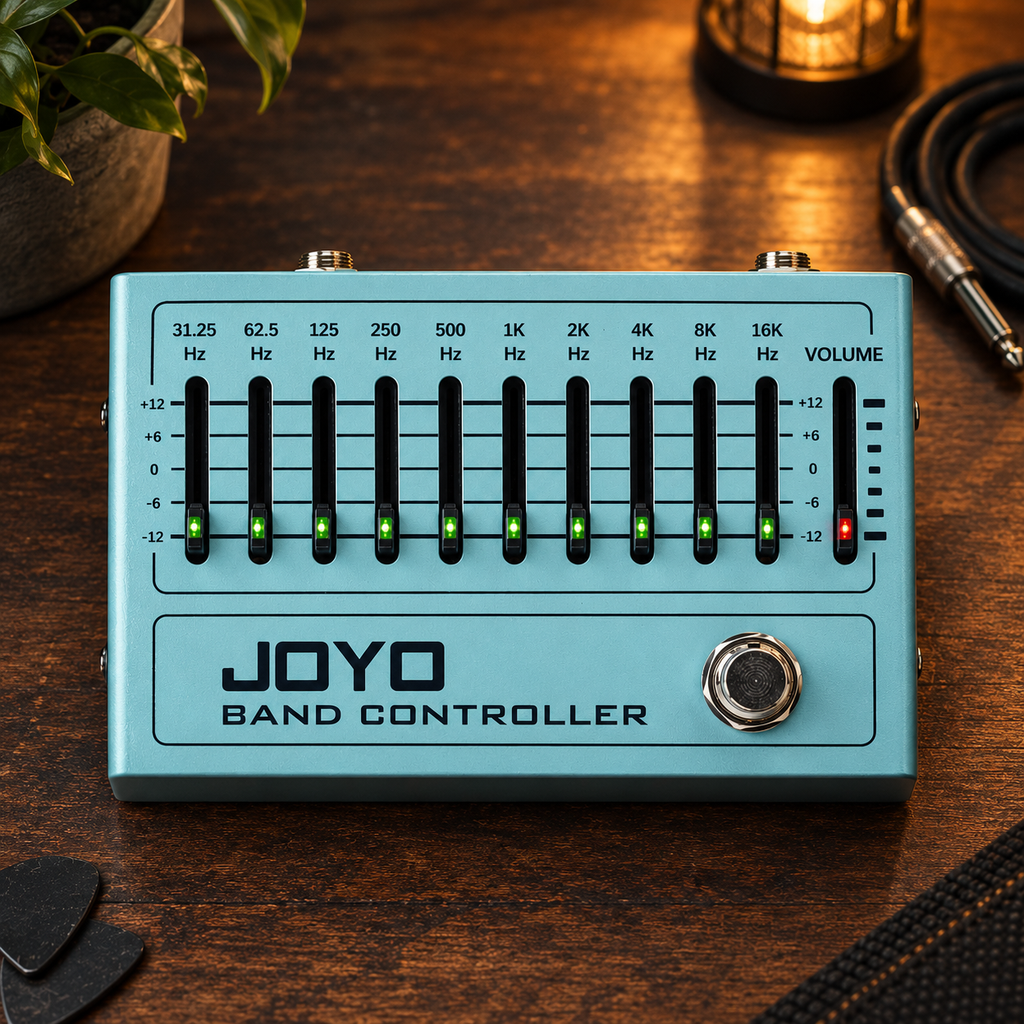

The R-12 is a ten-band graphic equaliser covering frequencies from 31.25 Hz to 16 kHz, with up to 12 dB of boost or cut available on each band. Those numbers might look rather abstract at first, but once you understand how different frequency ranges contribute to the sound of a bass guitar, the layout becomes considerably more intuitive.
Joyo R-12 Band Controller on Amazon →
What exactly is an EQ pedal doing?
An equaliser changes the balance of frequencies within an audio signal, allowing you to emphasise certain parts of the sound while reducing others. This matters because the character of a bass depends on considerably more than the low frequencies that give it its weight.
Every note contains a fundamental frequency alongside a series of harmonics that contribute to its overall timbre. A low E on a standard four-string bass has a fundamental of approximately 41 Hz, while the low B on a five-string sits around 31 Hz. However, the sound of those notes extends much higher into the spectrum, with the upper harmonics contributing to the attack, articulation and character that help the bass remain audible in a mix.
This is why the R-12’s range is useful even though the bass is traditionally associated with low frequencies. Its ten sliders let you shape everything from the deepest lows to the upper harmonics, giving you considerably more control than the basic bass, middle and treble knobs found on many amplifiers.
Understanding the R-12’s frequency bands
The ten bands are centred at 31.25 Hz, 62.5 Hz, 125 Hz, 250 Hz, 500 Hz, 1 kHz, 2 kHz, 4 kHz, 8 kHz and 16 kHz. Each slider affects a region around its centre frequency rather than one isolated point, so the results will depend on the surrounding bands, your instrument and the rest of your signal chain.
You don’t need to memorise the frequency spectrum to use the pedal effectively, but knowing what each region generally contributes makes it easier to identify the adjustments worth trying.
31.25 Hz: the very bottom
This is particularly relevant to five-string players because the frequency sits close to the fundamental of a low B string. Boosting it can add deep low-end weight, provided your amplifier and speakers can reproduce those frequencies effectively. Too much sub-bass, however, can consume headroom without making the instrument any clearer, so I’d approach this slider conservatively.
62.5 Hz: weight and fundamental
This region contributes to the solid, powerful low end that gives a bass line its foundation. A modest boost can help a thin-sounding instrument feel fuller, but excessive energy here can quickly make the sound boomy, particularly in rooms that already emphasise low frequencies. The aim is to give the bass weight without overwhelming the rest of the mix.
125 Hz: warmth and fullness
At 125 Hz, the emphasis is on warmth and body. Boosting this band can help a lean-sounding bass feel fuller, while cutting it slightly can tame an instrument that already has a thick low end. It’s also a useful frequency to experiment with when switching between basses with noticeably different tonal characteristics.
250 Hz: warmth versus muddiness
The 250 Hz region contributes to body, but too much energy here can make a bass sound woolly or indistinct. If your instrument sounds huge when practising alone but disappears into a muddy mix with the full band, try reducing this area before reaching for the treble control. A small cut can often improve definition without sacrificing the low end.
500 Hz: body and definition
This part of the midrange helps preserve the character of the bass in a mix. Too much can produce a boxy or congested sound, while cutting it excessively can leave the instrument feeling hollow. Adjusting 500 Hz independently is one of the advantages of a ten-band graphic EQ over the broader controls found on most amplifiers.
1 kHz: presence
Around 1 kHz, the midrange becomes particularly important to the perceived presence of the bass. A small boost can help notes remain audible among guitars, keyboards and vocals without adding more low end. Too much, however, can make the instrument sound nasal or honky, so the best setting depends on the arrangement and the character you’re after.
2 kHz: articulation
This band contributes to the definition of individual notes, making it useful for players who want their bass lines to cut through a dense mix. Pick players may appreciate the extra attack, while fingerstyle players can use it to bring out more articulation. Be careful with excessive boosts, though, as too much upper-midrange energy can make the sound harsh or tiring.
4 kHz: attack and string detail
At 4 kHz, the emphasis shifts towards the sharper details of your playing, including pick attack and the percussive elements of fingerstyle technique. Boosting this region can add definition, but it can also exaggerate string noise and make the bass sound clicky or abrasive. Players looking for a smoother tone may benefit from reducing it slightly instead.
8 kHz: brightness
This region affects the upper harmonics that contribute to brightness and string noise. Boosting it can add openness to a darker-sounding instrument, while cutting it can soften an overly bright bass or reduce unwanted high-frequency detail. If the instrument sounds muddy, however, addressing the low mids may be more effective than simply adding treble.
16 kHz: the extreme top end
The highest band has relatively little direct relevance to the fundamental notes of a bass, but it can influence the extreme upper end of the signal. Most players will probably make fewer adjustments here than on the lower bands, and the audible difference will depend on the instrument and playback system. Leaving it flat is perfectly reasonable if you’re already happy with your tone.
Using the R-12 to shape your bass sound
Understanding the individual bands is useful, but the real value of the R-12 comes from combining them to address specific problems. If your bass is too boomy, experiment with the lower bands to establish whether the excess energy comes from the deep lows or the low mids. If it sounds thin, a modest boost around 62.5 Hz or 125 Hz may help, while a bass that disappears behind the guitars might benefit more from additional presence around 1 kHz or 2 kHz.
These are starting points rather than fixed recipes, since the same adjustment can produce different results depending on the instrument, amplifier, room and arrangement. The bands also interact with one another, so a combination of small changes can produce a more balanced result than a dramatic boost or cut at a single frequency.
The R-12 is equally useful for more deliberate tone shaping. You could create a mid-focused sound for a particular section of a song, emphasise the low end for an intro or reduce the upper frequencies for a darker, vintage-inspired tone. Because the slider positions are visible, it’s easy to return to a previous setting or establish different configurations for different instruments.
The R-12 as a problem-solving tool
One of the best reasons to own an EQ pedal is the ability to adapt to different playing environments. A bass that sounds excellent at home or during soundcheck can behave quite differently once the room fills with people and the rest of the band starts playing. Room acoustics and speaker placement can create a build-up of certain frequencies, making the low end sound less controlled.
Increasing the volume won’t necessarily solve the problem. If the room is already exaggerating particular frequencies, adding more energy can make the mix muddier. Reducing the offending frequencies may produce a clearer result while allowing the bass to remain prominent.
The R-12 isn’t a surgical parametric EQ like the Empress Bass ParaEQ, which I covered in a previous review. A parametric equaliser generally provides more precise control over the centre frequency and bandwidth of an adjustment, whereas the Joyo uses fixed bands that are easier to understand and quicker to operate.
That simplicity is part of the appeal. You can see which frequency you’re adjusting and immediately hear the effect, without having to navigate a more complicated set of parameters. For many bass players, that is more than enough control to make meaningful improvements to their sound.
The Volume control is more useful than it might seem
Alongside the ten frequency sliders, the R-12 has a separate Volume control providing up to 12 dB of boost or cut to the overall signal. This is useful when your EQ adjustments change the perceived loudness of the instrument, allowing you to compensate for level differences and compare your processed tone with the original more fairly.
The control can also serve as a boost for solos or sections that need more prominence. You could establish your preferred EQ setting for normal playing and use the footswitch to bring the processed signal forward when required. The result depends on the headroom of the equipment that follows the pedal, since a substantial level increase may push another device into distortion rather than simply making the bass louder.
Build quality and pedalboard considerations

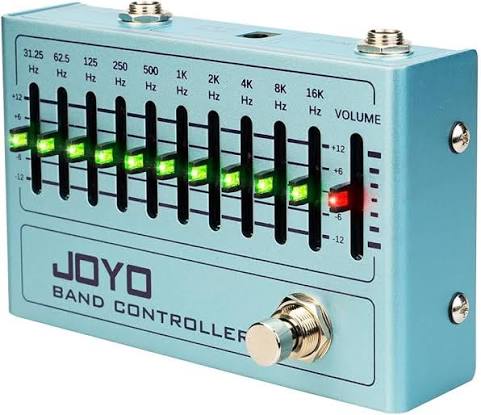

The R-12 belongs to Joyo’s R Series and follows the design language of the company’s larger pedals. Its ten illuminated sliders make the settings easy to see, while an LED mode switch allows you to select different lighting behaviours. The aluminium enclosure feels substantial without being excessively heavy, although the pedal’s footprint is worth considering if you’re working with a crowded pedalboard.
Power comes from a 9V DC centre-negative supply, and there is no battery compartment, so you’ll need to accommodate it within your pedalboard’s power setup. The main attraction, however, is the amount of tonal control available in a layout that’s easy to understand at a glance.
What I like about the Joyo R-12 Band Controller
The R-12’s biggest strength is its combination of a broad frequency range and an intuitive layout. The ten bands provide considerably more control than a typical three-band amplifier EQ, while the illuminated sliders make it easy to see what you’ve changed. The range is useful for both four- and five-string players, extending from the deep lows to the upper frequencies that influence attack and brightness.
The ±12 dB range also gives you room for both subtle corrections and more dramatic tone shaping, and the separate Volume control adds flexibility when balancing levels or using the pedal as a boost. For bass players who have never experimented with a dedicated EQ, the R-12 offers an accessible way to explore what equalisation can do without immediately investing in a more sophisticated parametric pedal.
What to keep in mind
The available boost and cut can also encourage excessive adjustments. Boosting several adjacent bands can significantly change the overall response and increase the signal level, potentially reducing headroom or overloading the next device in your chain.
I’d start with the sliders in their neutral positions and make small changes while listening to the result. If you’re trying to remove muddiness, for example, work on the relevant low-mid frequencies before making further adjustments elsewhere. It’s also important to compare the processed sound with the original at a similar perceived volume, since a louder signal can seem better even when the EQ hasn’t actually improved the tone.
Finally, remember that a setting that sounds great when practising alone may not work as well with a full band. The R-12 gives you the means to adapt, but listening carefully in the context of your music remains essential.
Final thoughts
The Joyo R-12 Band Controller is worth considering if you want more control over your bass tone than a conventional amplifier EQ can provide. Its ten frequency bands cover everything from the deepest lows to the upper harmonics, while the straightforward layout makes it relatively easy to understand what you’re changing and why.
Its greatest strength is accessibility. You can experiment with the relationship between different frequency ranges without needing to understand every technical detail of equalisation, whether you’re trying to reduce muddiness, bring more definition to a bass line or adapt your sound to a different room. The separate Volume control adds useful flexibility, although getting the best results still requires a little restraint and careful listening.
The R-12 won’t replace a parametric EQ such as the Empress Bass ParaEQ when precise control over a particular frequency is required. The Empress offers greater flexibility for that kind of work, while the Joyo prioritises a more direct, visual approach. For many players, that simplicity is precisely what makes it appealing.
You don’t necessarily need an EQ pedal to transform your sound completely. Sometimes your bass, amplifier and speakers are already doing most of what you want, and all that’s missing is a small adjustment somewhere in the frequency spectrum. The R-12 gives you a practical way to identify and correct that imbalance, making it a useful tool for both experimenting with new tones and getting more out of the sound you already have.
